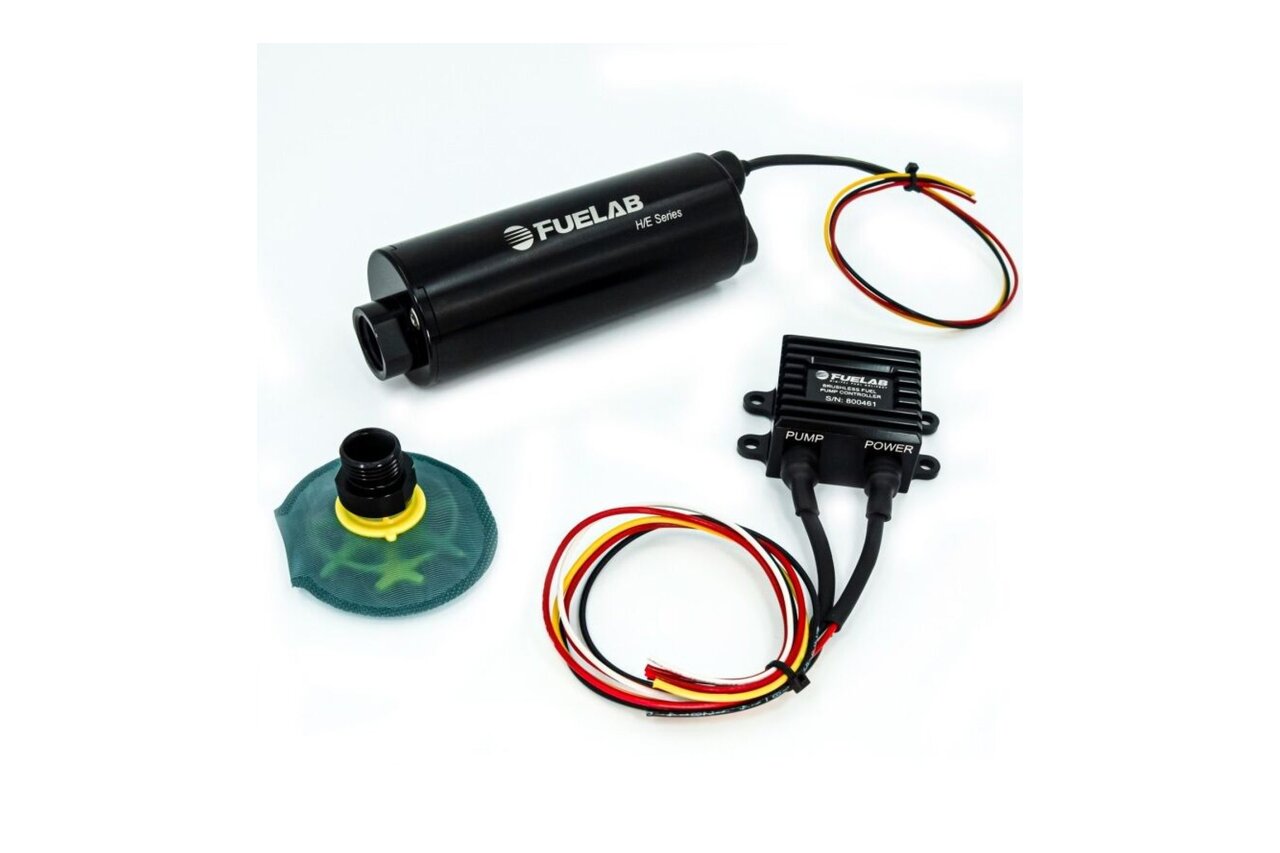

Fuelab 20815 H/E Series 1100lph In Tank Fuel Pump
Fuelab 20815 H/E Series 1100lph In Tank Fuel Pump
Regular price
$2,564.00 AUD
Regular price
Sale price
$2,564.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Fuelab 20815 H/E Series 1100lph In Tank Fuel Pump is a high-performance fuel pump designed to deliver dependable fuel flow for upgraded EFI, forced-induction and motorsport applications. Match the pump's flow, pressure and fuel compatibility to your engine's requirements before installation.
Key Features
- 1100lph rated flow
- In-tank installation
- Brushless motor
- Compatible with performance EFI fuel systems
- Designed for high-flow street and motorsport applications
Specifications
| Brand | Fuelab |
|---|---|
| Part Number | 20815 |
| Pump Type | In-tank |
| Motor Type | Brushless |
| Rated Flow | 1100lph |
| Maximum Pressure | 125PSI |
| Fuel Compatibility | gasoline, diesel, methanol, and ethanolTwin Screw Rotor Pumping Mechanism125PSI Max Operating Pressure2800HP power support at continuous speed (Pump Gas, Naturally Aspirated)Higher efficiency means less current draw and less noiseSuperior Priming CapabilitiesGreater resistance to cavitation (vapor lock)Backed by a limited lifetime warrantyMotor FeaturesLightweight super-efficient DC brushless motor to minimize current drawPowerful high flux density Neodymium rare earth magnetsNo motor brushes to wear out or corrode (low-Sulfur diesel, no problem)Wet motor design, no dynamic shaft seals that can wear outController Features12 to 16 volt vehicle electrical system compatibilityModel 72006 Pump Controller included for Full Speed or PWM Input speed controlContinuous duty motor speedConstruction FeaturesCompact, lightweight design, less than 3lbsBillet Aluminum Construction with anodize per MIL-A-8625, Type IILong Life, multi-fuel compatible Fluorosilicone static sealsAccepts standard or port style -8AN fittingsPulse Width Modulation Compatibility (PWM)Compatible with most aftermarket ECU’s with PWM output frequencyCompatible from 100Hz to 5000HzAEMECU MastersFueltechHaltechHolleyLink Engine ManagementMegasquirtManufacturer Part Number: 20815 Compatible with gasoline, diesel, methanol, and ethanol Twin Screw Rotor Pumping Mechanism 125PSI Max Operating Pressure 2800HP power support at continuous speed (Pump Gas, Naturally Aspirated) Higher efficiency means less current draw and less noise Superior Priming Capabilities Greater resistance to cavitation (vapor lock) Backed by a limited lifetime warranty Lightweight super-efficient DC brushless motor to minimize current draw Powerful high flux density Neodymium rare earth magnets No motor brushes to wear out or corrode (low-Sulfur diesel, no problem) Out of Stock |
| Advertised Power Support | 2800hp |
| Weight | 3 kg |
Selection note: Fuel-pump capacity depends on fuel type, base pressure, boost pressure, voltage and system layout.
Shipping: This product may be dispatched directly from our trusted Australian supplier.
Redline Lab: Australian-owned performance parts for street and motorsport builds.
