Fuelab

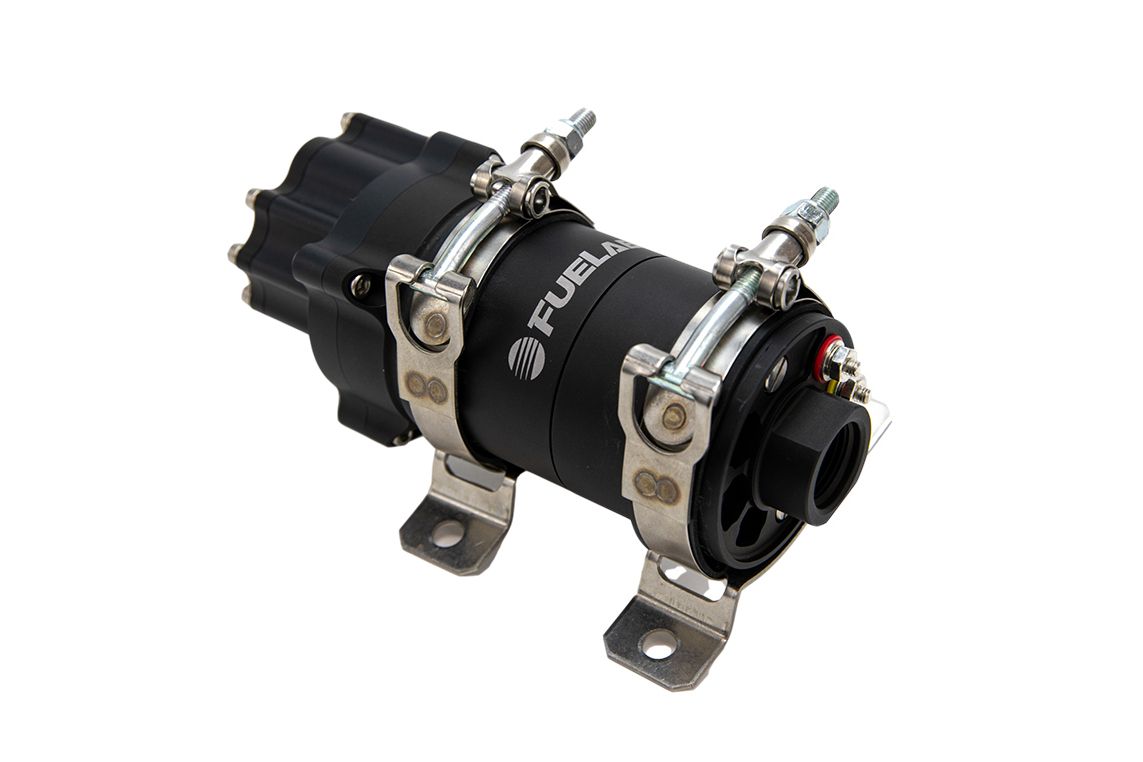

Fuelab 40501 PRO Series 3600HP In-Line Variable Speed Brushless Fuel Pump
Fuelab 40501 PRO Series 3600HP In-Line Variable Speed Brushless Fuel Pump
Regular price
$1,899.00 AUD
Regular price
Sale price
$1,899.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Fuelab 40501 PRO Series 3600HP In-Line Variable Speed Brushless Fuel Pump is a high-performance fuel pump designed to deliver dependable fuel flow for upgraded EFI, forced-induction and motorsport applications. Match the pump's flow, pressure and fuel compatibility to your engine's requirements before installation.
Key Features
- 5.5 GPM @ 45PSI rated flow
- In-line / external installation
- Brushless motor
- Compatible with performance EFI fuel systems
- Designed for high-flow street and motorsport applications
Specifications
| Brand | Fuelab |
|---|---|
| Part Number | 40501 |
| Pump Type | In-line / external |
| Motor Type | Brushless |
| Rated Flow | 5.5 GPM @ 45PSI |
| Inlet | -12AN |
| Outlet | -10AN |
| Fuel Compatibility | gasoline, diesel, ethanol and methanolHigh precision spur gear pumping mechanism-12AN Inlet and -10AN outlet PortsBacked by a limited lifetime warrantyMotor FeaturesLightweight super-efficient DC brushless motor reduces current drawLow mass rotor for high speed reaction to changes in speed and flowPowerful high flux Neodymium rare earth magnetsNo motor brushes to wear out or corrode (low-Sulfur diesel, no problem)Wet motor design, no dynamic shaft seals that can wear outElectronic FeaturesInternal Speed Controller for Variable flow operation12 to 24 volt vehicle electrical system compatibilityAccepts PWM input for speed controlNo expensive add-on voltage regulators or pump controllers required!Continuous duty – motor speed can be adjusted to meet fuel demandConstruction FeaturesCompact, powerful and lightweight – 3 |
| Advertised Power Support | 3600HP |
| Weight | 3 kg |
Selection note: Fuel-pump capacity depends on fuel type, base pressure, boost pressure, voltage and system layout.
Shipping: This product may be dispatched directly from our trusted Australian supplier.
Redline Lab: Australian-owned performance parts for street and motorsport builds.
