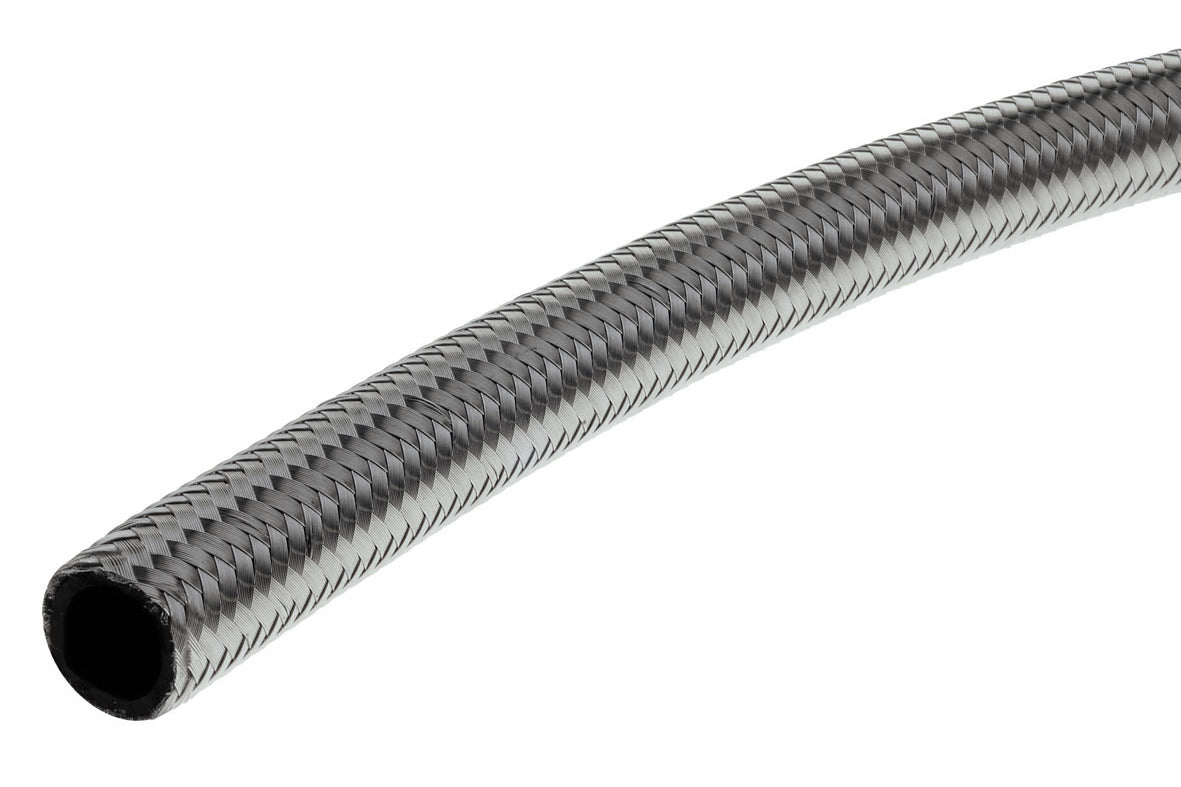

Raceworks AN-20 100 Series Stainless Braided Rubber Hose – 10m
Raceworks AN-20 100 Series Stainless Braided Rubber Hose – 10m
Regular price
$1,250.00 AUD
Regular price
Sale price
$1,250.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Raceworks AN-20 100 Series Stainless Braided Rubber Hose – 10m is designed for performance fuel, oil, coolant and vacuum plumbing where a flexible, abrasion-resistant braided hose is required. Its reinforced CPE rubber liner and stainless-steel outer braid provide dependable service in street, drift and motorsport builds.
Key Features
- Reinforced CPE synthetic rubber inner hose
- Double stainless-steel braid for abrasion and corrosion resistance
- Suitable for compatible fuel, oil, coolant and vacuum applications
- Flexible construction for custom engine-bay plumbing
Specifications
| Series | 100 Series |
|---|---|
| AN Size | AN-20 |
| Construction | CPE synthetic rubber inner hose with nylon reinforcement and double stainless-steel outer braid |
| Size | AN-20 |
| Length | 10m |
| Inside Diameter | 1-1/8″ / 28.5mm |
| Outside Diameter | 1-13/32″ / 35.8mm |
| Temperature Range | 40°C to 150°C |
| Burst Pressure | 1000psi |
| Minimum Bend Radius | 6.30″ / 160mm |
| Weight per Metre | 850g |
| Fuel Compatibility | Ethanol & Methanol Safe |
| Class | 100 Series Stainless Braided Rubber Hose |
| Part Number | RWH-100-20-10M |
| Warranty | 2 years |
Suitable Applications
- Fuel feed and return systems where the listed fuel compatibility is suitable
- Oil and lubricant plumbing
- Coolant and vacuum systems
- Street, drift, drag and circuit builds
Important: 100 Series rubber hose is not recommended for brake systems, transmissions, power steering, extreme-heat zones or routing inside passenger compartments. Use an application-specific PTFE hose where required.
