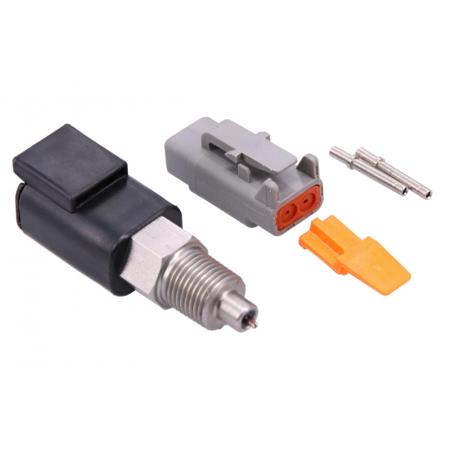

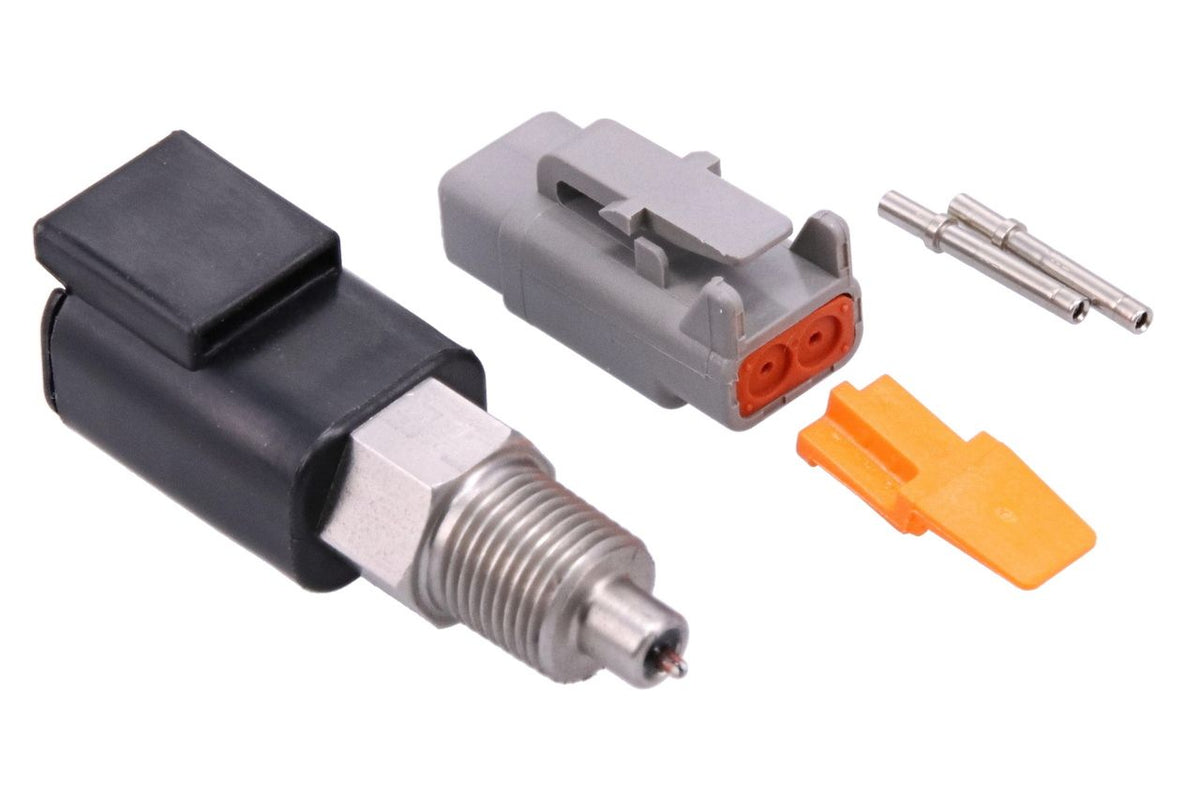

Raceworks Motorsport 1/8″ NPT Air Temperature Glass Encapsulated Sensor

Raceworks Motorsport 1/8″ NPT Air Temperature Glass Encapsulated Sensor. Includes Deutsch DTM connector, terminals and seals.

Vehicle Compatibility

• These sensors offer specifically chosen elements to operate within the temperature scales of motorsport cars and not your usual lower OEM factory temperatures. These scales ensure the largest voltage gaps between pull-up readings for the most accurate output, and to minimise ground gitters in problematic wiring harnesses.
• Internally these elements are completely sealed, in epoxy and affixed to high temperature multi strand tinned wire. This method minimises shorts and breaks between the element and the connector caused by harsh vibration and corrosion often seen in exposed rigid single core wired sensor equivalents.
• Elements are affixed to gold plated Deutsch DTM pins (0460-202-2031) and overmolded with PA66 high temp composite plastic housing to ensure a perfect fit for any 2pin Deutsch DTM06-2S connector.
• All shells are stainless steel, open element sensor tips are one piece with no plastic for harsh high pressure environments.
• Closed element fluid temperature sensors are filled with a thermal transfer compound and not hollow like others! This will ensure an even and fast temperature reading is registered by the element.
• Positive boost pressure support (tested up to 150psi, brass have been know to let go at only 25psi on occasion!)
• Voltage: 0-5V
• Range: -30 – 150degC
• Thread: 1/8″ NPT
• Included: DTM Connector plug and pins.

Manufacturer Part Number: ATS-502
